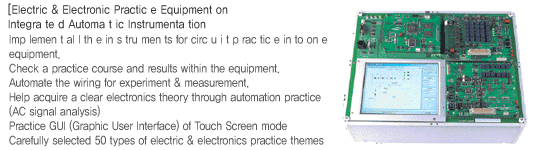

| Integrated automatic instrument-type
practice unit equipped with an oscilloscope, function
generator, power supplier and digital multimeter function
necessary for experiments. |
|
Apply the Embedded XP and conduct all the practices
for displaying remotely measured values on the 8.4inch
LCD Screen without external PC. No need for external
connections like probe by implementing a necessary switching
and instrument environment (practice point) with Touch
Screen. USB-based easy update |
|
Simulation-Verified Practice Circuit] Configure a theory
and practice appropriately in accordance with R, L,
C element features. Present a direction for easy theory
acquisition. Systematic learning through experiment
modules by each unit
Better understanding & application |
|
[Cultivating Troubleshooting Capacity] Provide an essential
electric & electronic necessary for understanding
a circuit. Cultivate a capacity for failure diagnosis
and error correction by presenting key points during
circuit operation. |

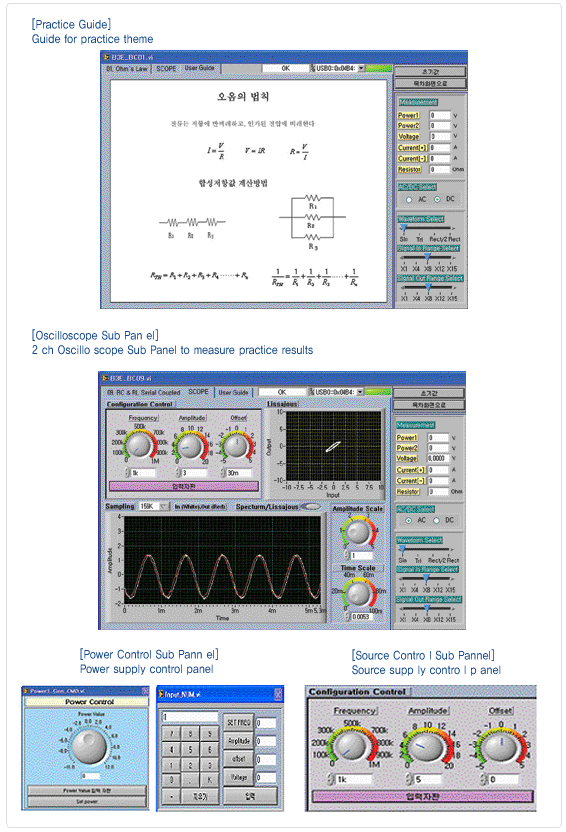

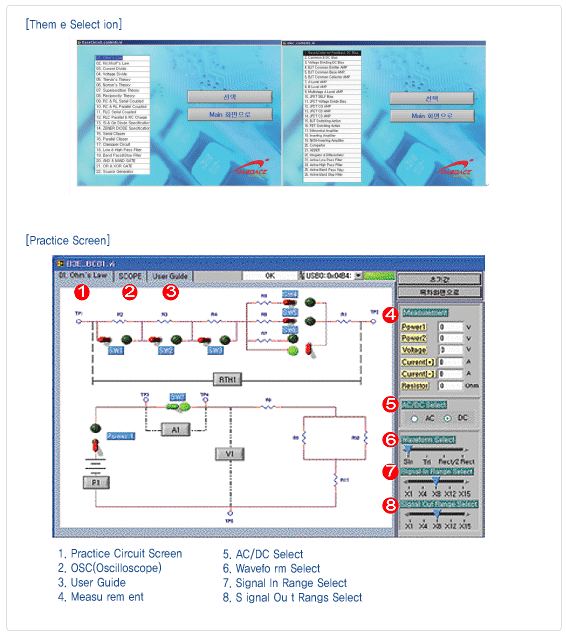

[Integrated Automatic Instrumentation Practice Unit]
Automatic experiment data acquisition device
Provide the GUI of practice theme Promote better understanding
by indicating a current process of a practice theme
(Switching Point & Probe Point Indicator) Check
as witch status and signal's input/output status on
a real-time basis. |
|
[Optimized Solution without External Manipulation] Provide
an optimized practice environment in which every instrumentation
probing status is manipulated with Screen Touch mode. |
|
Features
