Features |
|
|
| - |

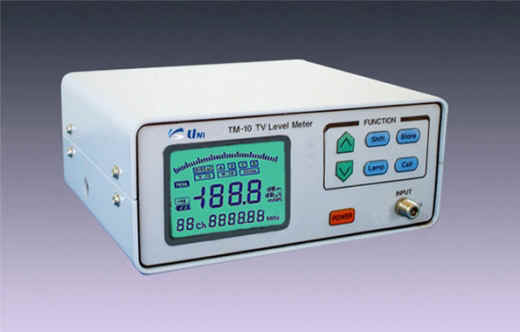

Handheld, portable CATV/TV Signal Strength Meter |
| - |
PLL tuning control for Frequency Selection
|
| - |
Video & Audio Level Measurement
|
| - |
Line voltage Measurement (AC/DC) |
| - |
Auto Attenuator control (IF : 20dB,
RF : 30dB) |
| - |
Built in Rechargeable Battery pack |
| - |
Auto power off |
| - |
99 Favorite Channel Memory |
| - |
Buzzer for Acoustic signal strength
monitoring |
| - |
Multi LCD display with Back light |
| - |
Last condition Store & memory |
| - |
Key Entry control |
| - |
Deluxe HANG-ON-NECK type CARRYING |
|
| |
Block Diagram |
|
|
| |
Specification |
|
|
|
|
|
Frequency
|
Range |
5 ~ 862 MHz with Channel selection |
|
|
|
| Tuning |
Channel tuning throughout the band |
|
|
|
| Favorite Channel memory
|
99 channels |
|
|
|
| Input Impedance |
75 W |
|
|
|
Input Level
|
Range |
Video: 30 ~ 120 dBuV , Audio : 0 ~ 50 dBuV |
|
|
| Attenuator |
50 dB (30dB, 20dB) |
|
|
| Max. Input Level |
120 dBuV |
|
|
| Reading |
In dBuV and dBm(Selectable) |
|
|
| Total Accuracy |
¡¾ 3 dB |
|
|
|
| Line Voltage Measurement
|
DC : 1 ~ 70 VDC |
| |
AC : 10 ~ 70 VAC / 50 & 60 Hz |
|
|
|
| Connector
type |
F-type (F-male) |
|
|
|
| Indication
|
Multi LCD display with BAR graph |
| Frequency, Channel, Level(dBuV,dBm), |
| VDC, VAC, Battery level |
|
|
|
|
|
Operating |
0 ~ 40¡É |
|
|
|
|
| Storage |
-10 ~ 50¡É |
|
|
|
|
Battery Capacity |
9.6V/1400mAH[Metal hydride] |
|
|
|
|
| Battery Life |
2.8HRS at 500mA |
|
|
|
| External power Supply
|
DC 15V 500mA (Charge & Adapter) |
|
|
|
| Weight |
Approx. 1.5 kg |
|
|
|
| Dimension |
180(W) ¢¥ 75(H) ¢¥ 150(D) mm |
|
|
|
| Standard Accessories
|
Carrying Case, Battery Charger |
|
|
|
|
|
