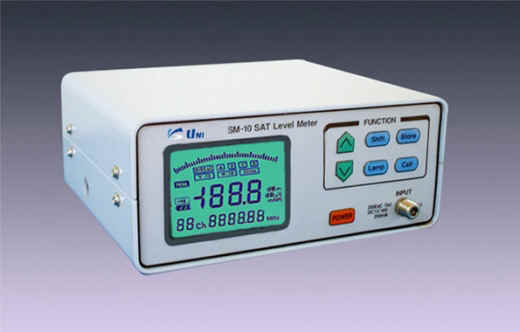

Features - Handheld, portable SATELLITE SIGNAL STRENGTH METER - PLL tuning control for Frequency Selection - DiSEqCTM1.0 leveled signal out function - LNB Current measurement - Built in Rechargeable Battery pack for powering LNB - Auto power off - 99 Favorite Channel memory - Peak holder function for detecting Max. Input level Display - Buzzer for Acoustic signal strength monitoring - Multi LCD display with Back light - Last condition Store & memory - Key Entry control - Deluxe HANG-ON-NECK type CARRYING CASE for hand-free use

Block Diagram

Specification Function Specification Frequency Range 950 ~ 2150 MHz Resolution 250 kHz Tuning Continuous throughout the band(250 kHz step) IF Bandwidth 27 MHz Favorite Channel memory 99 channels IF Bandwidth 75 W Input Level Range 40 ~ 80 dBuV Max. Input Level 80 dBuV Reading In dBuV Total Accuracy ± 3 dB Out put signal to DiSEqCTM 1.0 ANTENNA system LNB Current Measurement 0 ~ 400 mA Connector type F-type (F-male) Indication Multi LCD display with BAR graph Frequency, Channel, Level, VDC, mADC, Battery level Environment Condition Operating 0 ~ 40℃ Storage -10 ~ 50℃ Internal power Battery Capacity 18V/1400mAH[Metal hydride] Battery Life 2HRS at 700mA LNB Load External power Supply DC 24V 500mA (Charge & Adapter) Weight Approx. 1.5 kg Dimension 180(W) ´ 75(H) ´ 150(D) mm Standard Accessories Carrying Case, Battery Charger Internal power   Q’ty Size(mm)   N.W.(kg)   N.W.(kg)   Remark Inner Packing 1 200(W)x185(D)x120(H)       2.0     Carton Packing 3 310(W)x400(D)x230(H)   6.0   7.0
