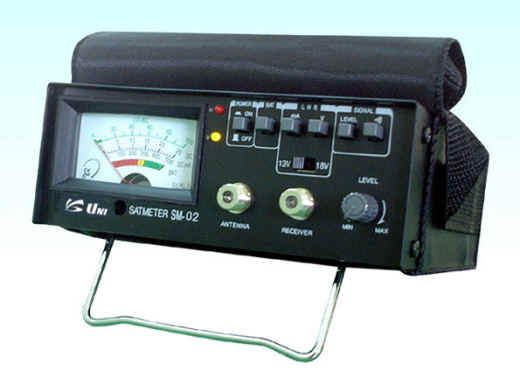

Features - Wide Frequency Bandwidth - Handheld, portable Satellite IF SIGNAL STRENGTH METER - ANALOG METER for easier readouts - LNB Voltage and Current measurement - Buzzer for ACOUSTIC signal strength monitoring with on/off switch - Highest input sensitivity through MMIC technology - Built in RECHARGEABLE Battery pack for powering LNB - Very rigid METAL CABINET for field use with nice Carrying case

Block Diagram

Specification - Frequency range : 950 MHz to 2,150 MHz - Input Impedance : 75 W - Dynamic Range : -40 to + 5 dBm - Indication : Analog Panel Meter, 100uA FSD 2.5 % - Insertion Loss : 6 dB Typical - Acoustic Indicator : 2 kHz to 20 kHz - DC Voltage Measurement : 0 to 25 V - DC Current Measurement : 0 to 500 mA - LNB Voltage Output : 13/18 VDC Selectable - Battery Life : 2.5 HRS at 150 mA LNB load - Dimension : 150(W) x 56(H) x 120(D) mm - Weight : Approx. 900 g - Standard Accessories : Carrying Case, Manual - Optional Accessory : Battery charger (24V100mA)
