Features |
|
|
| - |

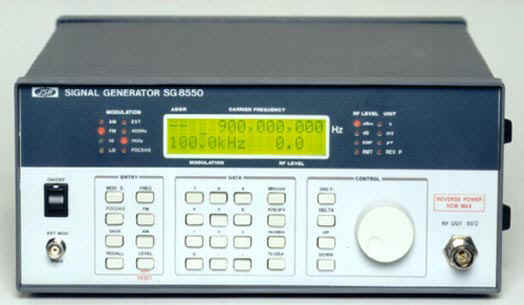

Synthesized Signal Generator (CW, FM & AM) |
| - |
Wide Frequency Range : 100KHz~1100MHz
|
| - |
Cover all VHF Band from 100KHz~1100MHz
|
| - |
Store up to 100 point of frequency,
output level and modulation value in nonvoltage memories |
| - |
Compact size & light weight |
| - |
Reverse power protector(MAX. 50W) |
| - |
For production of TV sets, FM &
AM Radio, Cordless Telephone Set, Pager, Telecom Equipment, |
| |
Car Audio Sets and CB Radio |
|
| |
Block Diagram |
|
|
| |
Specification |
|
|
|
|
|
Frequency
|
Range |
100§Ô~1100§Ö |
|
|
| Dispaly |
16¡¿2 LCD |
|
|
| Resolution |
1KHz(100KHz~500MHz), 2.5KHz(500MHz~1100MHz) |
|
|
| Accuary |
¡¾1.0¡¿10(-6) |
|
|
|
|
Range |
-14dBuV~128dBuV EMF at 100MHz (-127dBm~13dBm) |
|
|
| Dispaly |
16¡¿2 LCD |
|
|
| Resolution |
0.1dB |
|
|
| Accuary |
¡¾1.5dB>-37dBm, ¡¾(1.5dB+0.1dB/10dB)¡Â-37dBm |
|
|
| Impedance |
50§Ù |
|
|
| VSWR |
¡¾1.2dB at 0dBm |
|
|
| Flatness |
¡Â-25dBc |
|
|
| Hamonics |
|
| Residual |
| Modulation |
| |
|
| FM |
|
< 5Hz |
(CF : < 175MHz) |
|
|
| < 10Hz |
(CF : < 175MHz~550MHz) |
|
| < 20Hz |
(CF : < 550MHz~1100MHz) |
|
|
|
| AM |
|
< -65dBc |
|
|
|
| Reverse Power |
MAX. 50W |
| Protection |
Modulation
|
Internal |
1KHz or 400Hz ¡¾ 2% |
|
|
| External |
| Impedance |
100§Ú Unbalanced |
|
|
| Input Lever |
0~2Vrms |
|
| Frequency Range |
FM 20Hz~100KHz, AM 20Hz~10KHz |
|
| Frequency Response |
within ¡¾ 1dB (1KHz reference) |
|
|
|
| FM |
|
Range |
|
| Resolution |
|
| Accuracy |
|
| Distortion |
|
|
0.0~100KHz |
|
| 0.1KHz |
|
| ¡¾6% at internal rate |
|
| less than 1% by 1KHz AF signal |
|
|
|
| AM |
|
Range |
|
| Resolution |
|
| Accuracy |
|
| Distortion |
|
|
0.0~99.9% (¡Â6dBm) |
|
| 0.1% |
|
| ¡¾6% at internal rate |
|
| < 5% |
|
|
|
|
| AC Power |
100/220V ¡¾ 10%, 50/60Hz |
|
|
| Others |
Dimension(mm) |
134(H)¡¿300(W)¡¿330(D) |
|
 |
| Weight |
Approx. 8.5Kg |
|
|
|
|
|
