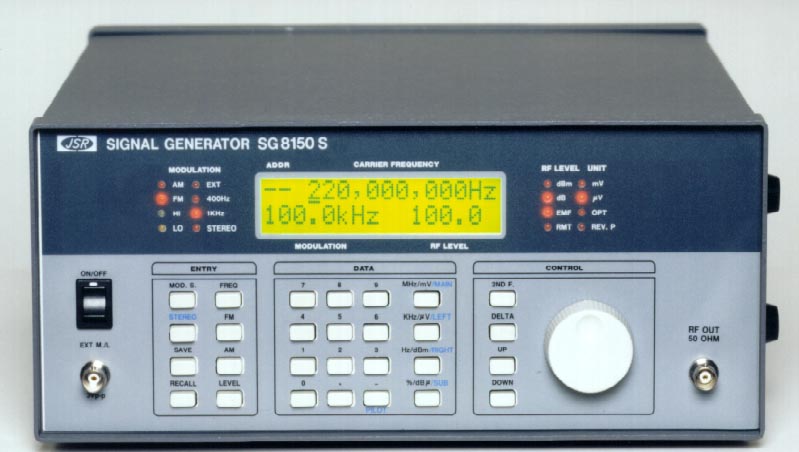

SG-8150 : 100KHz~220MHz RF Signal Generator SG-8150S :100KHz~ 220MHz RF Signal Generato, FM Stereo
|
|
Features |
|
|
- |
Synthesized Signal Generator (CW, FM & AM) |
- |
Wide Frequency Range : 100KHz~220MHz
|
- |
Cover All VHF Band From 100kHz~220MHz
|
- |
Store Up To 100 Points of Frequency,
Output Level and Modulation Value In Nonvolatile Memories
|
- |
Compact Size & Light Weight |
- |
PC-Remote Control by RS-232C(Option)
|
- |
Reverse Power Protector (Max 50W, option)
|
- |
For Production of TV Set, FM&AM
Radio, Cordless Telephone Set, Pager, Telecom Equipment,
Car Audio Set, CB Radio |
- |
FM-Stereo (SG-8150S) |
|
|
Block Diagram |
|
|
|
Specification |
|
|
|
|
|
Frequency |
Range |
100KHz~220MHz |
|
|
Dispaly |
16¡¿2 LCD |
|
|
Resolution |
100Hz(100KHz~500MHz), 500Hz(500MHz~220MHz) |
|
|
Accuary |
¡¾1.0¡¿10(-6) |
|
|
|
Output Level
|
Range |
-20dBuV~100dBuV at open circuit |
|
|
Display |
16¡¿2 LCD |
|
|
Resolution |
0.1dB |
|
|
Accuracy |
Less than ¡¾1dB (0dB~100dB), less than ¡¾2dB(below 0dB)
|
|
|
Impedance |
50§Ù |
|
|
Spurious & Harmonics |
Less than ?30dBc under 110MHz |
|
|
|
Modulation
|
Internal |
1KHz or 400Hz ¡¾ 2% |
|
|
External |
Impedance |
100§Ú Unbalanced |
|
|
Input Lever |
0~2Vrms |
|
Frequency Range |
FM 20Hz~100KHz, AM 20Hz~10KHz |
|
Frequency Response |
within ¡¾ 1dB (1KHz reference) |
|
|
|
FM |
|
Range |
|
Accuracy |
|
Distortion |
|
Step |
|
|
0.0~100KHz |
|
¡¾3% |
|
<0.1% at full range with 75KHz DEV. |
|
0.1KHz |
|
|
|
AM |
|
Range |
|
Accuracy |
|
Distortion |
|
|
Step |
|
|
0.0~60% |
|
¡¾5% |
|
<0.5% for 30% by 1KHz AF Signal at 100dBuV
EMF |
<1.5% at the other range |
|
0.1% |
|
|
|
|
Options
|
|
PC-Remote Control by RS-232C |
|
Reverse Power Protection (MAX. 50W) |
|
POCSAG FORMAT |
|
|
|
AC Power |
100/220V ¡¾ 10%, 50/60Hz |
|
|
|
Others |
Dimension(mm) |
: 134(H)¡¿300(W)¡¿330(D) |
|
|
Weight |
: Approx. 8.5Kg |
|
|
|
|
|
|
