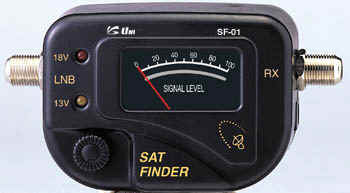

| Analog Type, 950MHz~2050MHz Low Cost Satellite IF Level Meter |
| |
Features |
|
|
| - |
SMALL AND SMART DESIGNED satellite |
| - |
SIGNAL STRENGTH METER |
| - |
ANALOG METER for easier readouts |
| - |
Frequency range 900MHz to 2,050MHz |
| - |
Highest input sensitivity through MMIC
technology |
| - |
Built in integrator for BROAD BAND FREQUENCY
scanning |
| - |
LED indicator for horizontal (18V) or
vertical (13V) polarization |
|
| |
Block Diagram |
|
|
| |
Specification |
|
|
|
| - |
Frequency range: 900 MHz to 2,050 MHz |
| - |
Detection Range: -40 to -10dBm |
| - |
Input impedance: 75 W |
| - |
Insertion Losses: 4 dB approx. |
| - |
Indication: Analog Panel Meter |
| - |
Connector: ¡°F¡± Female type |
| - |
Dimension: 95(W) x 55(D) x 30(H) mm
|
| - |
Weight: Approx. 120 g |
| |
Packing details |
|
|
|
| - |
Individual Packing : Blister Pack |
|
|
|
