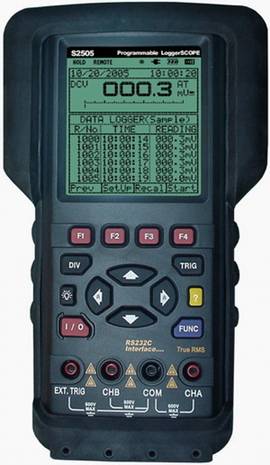

Features 1. Universal SCOPE   - Dual Channel and Auto Calibration - Sampling Time / Single CH mode: 50 MS/s, Dual CH mode: 25 MS/s - DC to 5MHz Oscilloscope band width - Automatic Triggering. - Automatic setting for horizontal and vertical division - Roll and Single shot mode - Excellent internal noise reduction - Real time Update. 2. Data Logger - Data Logging function stores up to 17,000 readings - Sampling Rate: 0.25S/s to 60S/s - Sampling Mode: Peak, Sampling Time - Real Time Clock(RTC) 3. Digital Multi-Meter   - Large 5,000 count and fast 50 segment analog display - Programmable Multi display   Record (MAX, MIN, AVG), Relative (REF, ERR), Compare (GO-NOGO) mode - Trend plot, Data hold and run mode - Built-in auto ranging True RMS measurements for AC - 600V Overload Protection 4. Frequency Counter - Frequency Range: 0 to 10MHz - Accuracy: ±(0.05%+5) 5. General - Easy to Operate - Extra Bright Back light display and Low battery indication. - USB interfaces for measurement data & waveform. - Display Type: Super-Twist 132 x 128 pixels Universal Scope Mode Data Logger Mode DMM / Record Mode DMM / Relative Mode DMM / Compare Mode DMM / Trend Mode

Block Diagram

Specification   Oscilloscope Function Horizontal Sample Rate 50MS/s (Single CH) / 25MS/s (Dual CH) Record Length 512 in single shot mode and 256 in all other modes. Sample / Div 25 Update Rate Real Time Modes Single shot, Roll, Normal Accuracy 0.01% Sweep Rate 1μS to 5S in 1, 2, 5 sequence Triggering Type Internal, External Coupling AC, DC Slope ↑or↓ edge Internal Sensitivity 2 / 20 Division Vertical Bandwidth 5MHz Resolution 8 Bit Channels Dual Coupling AC, DC Input impedance 1 MΩ Accuracy 3% Max. Input Volts DC or AC 600Vrms Volt / Division 50mV to 500V in 1, 2, 5 sequence Other Wave Form Memory 16 Shots           Data Logger Function Data Logger Memory 17,000 Points Sample Rate Max. 0.25S/s to 60S/s Sampling Mode Peak, Sampling Time Clock Real Time   Digital MultiMeter Function - Programmable Function: Record (MAX, MIN, AVG), Relative (REF, ERR), Compare (GO-NOGO) - Trend plot DC V ScopeV /Div 50m,100m,200m 500m, 1, 2 5, 10, 20 50, 100, 200 500 DMM Range 500mV 5V 50V 500V 1000V Resolution   0.1mV 0.001V 0.01V 0.1V 1V Accuracy     ±(0.3%+3)   ±(0.5%+5)   Impedance       1 MΩ     ACV (True RMS) ScopeV /Div 50m,100m,200m 500m, 1, 2 5, 10, 20 50, 100, 200 500 DMM Range 300mV 3V 30V 300V 750V Resolution   0.1mV 0.001V 0.01V 0.1V 1V Resolution   0.1mV 0.001V 0.01V 0.1V 1V Impedance       1 MΩ     OHM Range 5 kΩ 50 kΩ 500 kΩ 5 MΩ Resolution 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ Accuracy ±(0.5%+5)     ±(0.75%+10) Over Load Protection   600V DC or AC Peak     Continuity Test Voltage 1.7V Threshold 100 digits Over Load Protection 600V DC or AC Peak Buzzer Frequency (Full Auto Range)   Range 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz 10 MHz Range 0.01 Hz 0.0001 kHz 0.001 kHz 0.01 kHz 0.0001 MHz 0.001 MHz Accuracy   ±(0.05%+5)     Over Load Protection   600V DC or AC rms     RPM Range 240 - 60,000 Resolution 1 RPM Accuracy ±(0.05%+5) Pulse Width Range 2μS - 500mS (Pulse Width > 2μS) % Duty Range 25% - 75% General Power Requirement Ni-MH Battery 4.8V (1.2V x 4 cell) Battery Life Time 4 Hours with Backlight off, 3 Hours with Backlight on Dimensions / Weight 90(W) x 195(H) x 40(D) mm / About 460g Standard Accessories Manual, Test Leads (2), Ni-MH Battery, Rechargeable Adaptor Optional Accessories USB Cable & S/W, Rubber Holster, Carrying Case
