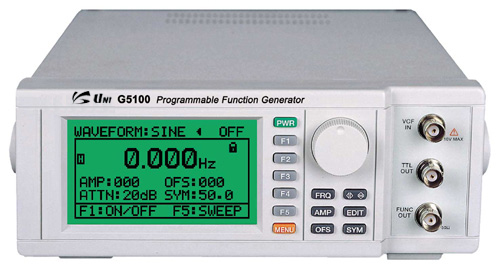

Features |
|
|
| - |
1Hz to 15MHz frequency output in 4 digits resolution
LCD display |
| - |
Waveform : Sine and Square wave (15MHz),
Triangle ad Ramp wave (100KHz) |
| - |
CW, BURST, SEWWP and TRIG. Mode |
| - |
DC Offset : -7.5V to +7.5V |
| - |
Direct display synthesis for excellent
stability |
| - |
Setup : Setting and functions are selected
and stored in memory from the front panel. Eight setups
are stored in memory. |
| - |
Equipment : Display information about
your instrument including model number, serial number,
calibration date, GPIB address and firmware revision.
|
| - |
Remote Control : Built-in RS232C or
optional GPIB interface |
| - |
128 by 64 pixel super twisted LCD display
|
| - |
Power Source : 85V to 270VAC (¡¾10%,
48 to 66Hz) |
 |
 |
 |
 |
| AMP Display |
Sweep Display |
Setup |
Equipment |
|
| |
Block Diagram |
|
|
| |
Specification |
|
|
|
|
|
| Frequency
Characteristics |
Freq. Range |
1Hz to 15MHz |
|
|
| Resolution |
4 Digits |
|
|
| Accuracy |
¡¾(Set Value * 0.5% + 1 digit) |
|
|
|
| Output
Level |
Output waveforms |
Sine, Triangle, Square, TTL rectangular, Step, etc
|
|
|
| Output range |
Max. 20Vpp (No load); Max.10Vpp into 50§Ù |
|
|
| Impedance |
50§Ù ¡¾ 5% |
|
|
| Attenuator |
0dB, 20dB< |
|
|
| DC offset |
¡¾7.5V DC (No Load) |
|
|
|
|
| Wave form
Characteristics |
| Sine wave |
|
Freq. range |
|
| Amplitude |
|
| Distortion |
|
|
1Hz to 15MHz |
|
| Max.10Vpp (into an Impedance 50§Ù) |
|
| <1.5% (10Hz to 100kHz) |
|
|
|
| Triangle wave |
|
Freq. range |
|
| Linearity |
|
|
1Hz to 100kHz |
|
| Better than 1% |
|
|
|
| Square wave |
|
Freq. range |
|
| Rise & Fall time |
|
| Symmetry |
|
|
1Hz to 15MHz |
|
| < 35nS (Maximum output) |
|
| 20% to 80% |
|
|
|
| Pulse wave |
|
Freq. range |
|
| Rise & Fall time |
|
| Duty Cycle |
|
|
1Hz to 15MHz |
|
| < 35nS (Maximum output) |
|
| 100nS to 10S |
|
|
|
| Ramp wave |
|
Freq. range |
|
| Linearity |
|
|
1Hz to 100kHz |
|
| 1% (1Hz~100kHz) |
|
|
|
|
| SWEEP Characteristics |
SWEEP period |
9.95S to 0.05S |
|
|
| SWEEP range |
1:1 to 10:1 |
|
|
| External SWEEP |
To be controlled by the VCF input |
|
|
|
| VCF input
|
Input voltage |
¡¾5V DC, maximum sweep occurs at 5VDC |
|
|
| Accuracy |
1% |
|
|
| VCF Input impedance |
Approximately 1k§Ù |
|
|
|
TTL output
|
Level (TTL) |
Fixed amplitude,< 0.4V: for a low ¡°L¡±, |
| |
and g> than 2.4V: for a high ¡°H¡± |
|
|
| Rise and Fall time |
< 35nS |
|
|
|
|
| FUNC output |
Level (TTL) |
Variable Amplitude (Max. 10Vpp, Impedance 50§Ù) |
|
|
|
| General
|
Power Source |
85V to 270Vac(¡¾10%, 48 to 66Hz) |
|
|
| Dimensions / Weight |
235(W) x 296(D) x 85(H) mm / About 1.5 kg |
|
|
| Standard Accessories |
Users Manual, BNC cable, Line Cord, Spare fuse, |
| RS232 Cable and S/W |
|
|
| Optional Accessories |
GP-IB (IEEE-488.2) Interface (Installed) |
|
|
|
|
|
