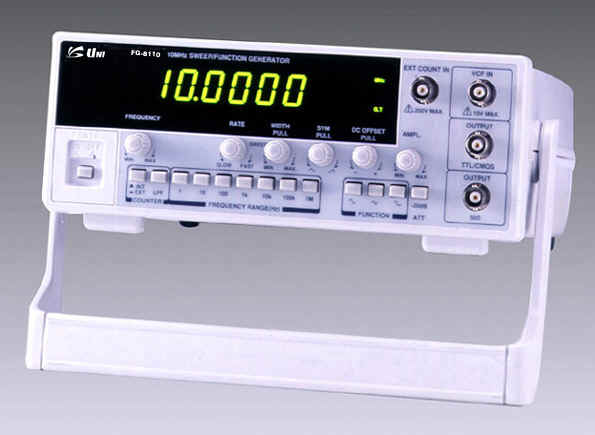

Features - 4-in-1 Sweep, Function & Pulse Generator and Frequency Counter - Versatile waveforms for Sine, Square, Triangle, Ramp, Pulse, Sawtooth and DC outputs - 0.1 Hz to 10 MHz Frequency Out put in 7 Ranges - Built in 7digits External Counter Display measuring up to 110MHz - Internal and External linear Sweep control from 1:1 to 100:1 - Variable Symmetry for generating Sawtooth and Pulse waveforms - TTL leveled Square waveform output - Variable DC Offset control - Variable Output level control with 20 dB Attenuator and Amplitude control

Block Diagram

Specification Function Specification Output Characteristic Waveforms Sine, Square, Triangle, Ramp, Pulse, Sawtooth, TTL Leveled Square, DC Frequency Range 0.1Hz to 10MHz in 7 Range (1,10,100,1K,10K,100K,1M) Frequency Accuracy ± 5% of full scale Output Level 20Vp-p in open circuit, 10Vp-p into 50Ω Load DC Offset Control More than +/-5V (into 50ohm) Output Impedance 50Ω±5% Attenuator -20dB fixed and continuously variable Waveform Characteristics Sine wave Flatness : ±0.3dB to 10MHz Distortion : Less than 1% at 0.1Hz to 100KHz Square wave Rise and Fall time : Less than 25nSec Triangle wave Linearity : More than 99% at 0.1Hz to 100 kHz TTL Output Rise and Fall time : Less than 25nSec Output Level :TTL Level ( H ; Higher than 2.4V, L ; Lower than 0.4V) Symmetry Variation 1 :1 to 10 : 1 Sweep Function Characteristic Mode Linear Width Variable from 1 :1 to 100 : 1 Rate 0.5Hz to 50Hz(20mSec to 2Sec) External VCF Input Input Voltage 0 to 10V Input Impedance : Approx. 10 kohm Frequency Counter Characteristic Display 7digit Green LED, Overflow, Gate time, MHz, kHz, Hz, mHz, Frequency Range 200mHz to 110MHz with Auto Range Accuracy +/- Timebase Error+/- 1Count Low pass Filter -3dB, 100kHz Input Sensitivity 100mVrms Time base 10MHz Crystal, 20ppm Max. Input Voltage 250Vpp General Power Requirement 115 or /230 VAC ± 10%, 48 to 66Hz Operating Temperature 0 to 50℃ (Accuracy specified at 25 ± 5℃) Dimension 240(W) X 270(D) X 90(H)mm Weight Approx. 3 kg Standard Accessories Power Cord, BNC Cable, Fuse, Instruction Manual
