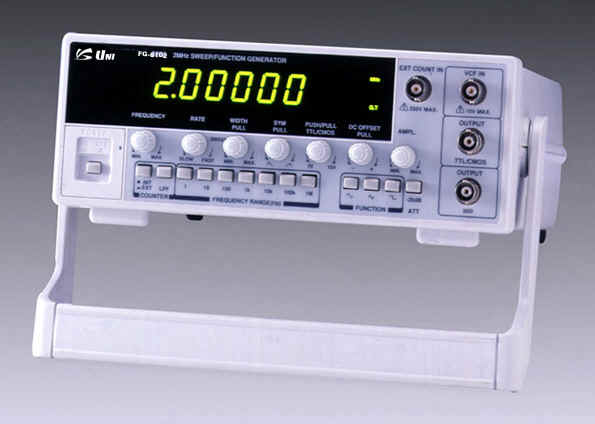

Features - 4-in-1 Sweep, Function & Pulse Generator and Frequency Counter - Versatile waveforms for Sine, Square, Triangle, Ramp, Pulse, Sawtooth and DC outputs - 0.02 Hz to 2 MHz Frequency Output in 7 Range - Built in 6digit Internal and External Counter Display (Up to 50MHz) - Internal and External linear Sweep control from 1:1 to 100:1 - Variable Symmetry for generating Sawtooth and Pulse waveforms - TTL and CMOS leveled Square waveform output - Variable DC Offset control - Variable Output level control with 20 dB Attenuator and Amplitude control

Block Diagram

Specification Function Specification Output Characteristic Waveforms Sine, Square, Triangle, Ramp, Pulse, Sawtooth ,TTL/CMOS Leveled Square, DC Frequency Range 0.02Hz to 2MHz in 7 Range (1,10,100,1K,10K,100K,1M) Frequency Accuracy ± 5% of full scale Output Level 20Vp-p in open circuit, 10Vp-p into 50Ω Load Output Impedance 50Ω ± 5% Attenuator -20dB fixed and continuously variable Waveform Characteristics Sine wave Flatness : ± 0.3dB to 2MHz Distortion : Less than 1% at 0.2Hz to 100KHz Square wave Rise and Fall time : Less than 25nSec Triangle wave Linearity : More than 99% at 0.2 Hz to 100 kHz TTL/CMOS Output TTL Output Level (H≥2.4V L ≤ 0.4V) CMOS Output Level : 5 to 15V ± 1V Symmetry Variation 1 :1 to 10 : 1 Sweep Function Characteristic Mode Linear Width Variable from 1 :1 to 100 : 1 Rate 0.5Hz to 50Hz(20mSec to 2Sec) External VCF Input Input Voltage 0 to 10V Input Impedance : Approx. 10㏀ Frequency Counter Characteristic Display 6digit Green LED, Overflow, Gate time, MHz, kHz, Hz Frequency Range 200mHz to 50MHz Accuracy ± Timebase Error ± 1 Count Input Sensitivity 100mVrms Time base 10MHz Max. Input Voltage 250Vrms General Power Requirement 115 or 230 VAC ± 10%, 48 to 66Hz Operating Temperature 0 to 50℃ (Accuracy specified at 25 ± 5℃) Dimension 240(W) X 270(D) X 95(H) mm Weight Approx. 2 kg Standard Accessories Power Cord, BNC Cable, Fuse, Instruction Manual
