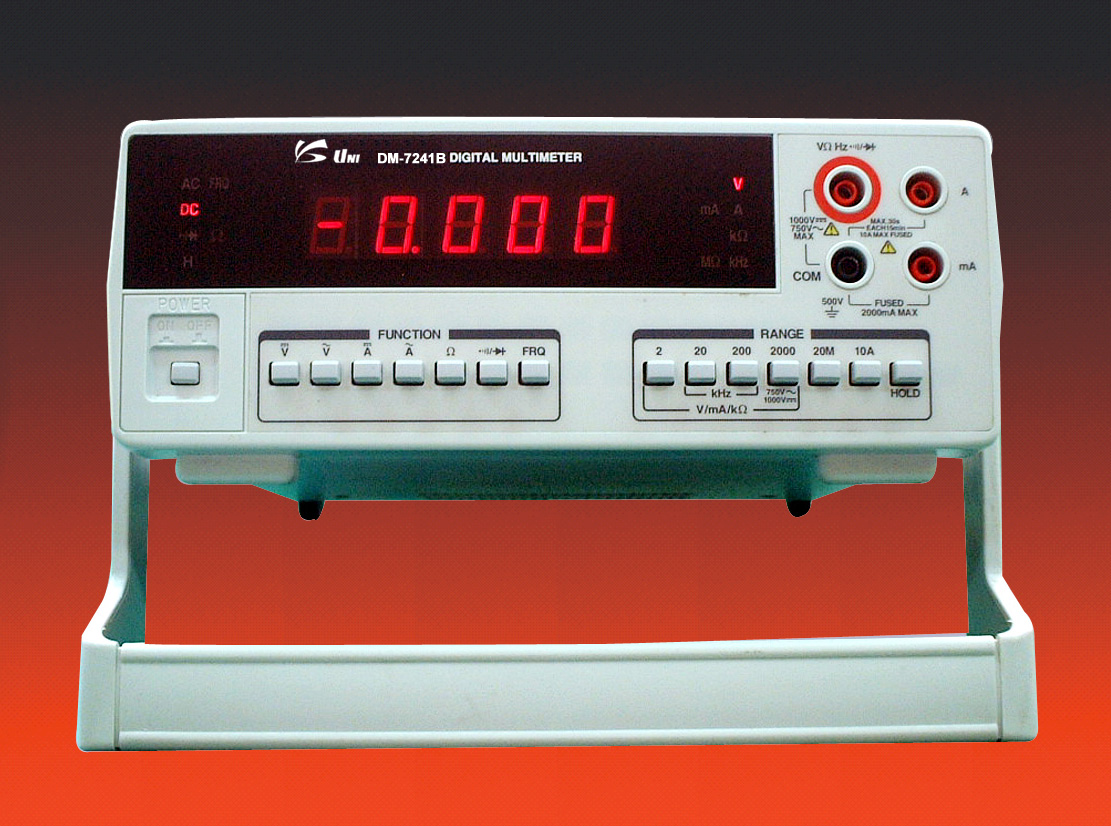

| 4¨ö DIGITS 20,000 COUNTS BENCH MULTIMETER
|
| |
Features |
|
|
| - |
Bench type Digital Multimeter with 4 1/2 digit (LED)display
|
| - |
Basic accuracy for DCV ; 0.05 % |
| - |
Overload protection on all range |
| - |
AC/DC Voltage measurement (Up to 1000V,
AC750V) |
| - |
AC/DC Current measurement (Up to 10A) |
| - |
Resistance measurement (Up to 20Mohm) |
| - |
Frequency Measurement (Up to 200kHz)
|
| - |
Audible continuity test and Diode test
|
|
| |
Block Diagram |
|
|
|
| |
Specification |
|
|
|
DCV
|
|
| 2 V |
100 uV |
|
| 20 V |
1 mV |
|
| 200 V |
10 mV |
|
| 1000 V |
100 mV |
|
|
|
|
10 Mohm |
| (0.05% + 5d) |
| |
| +/- (0.1% + 5d) |
|
|
|
|
|
AC Voltage |
|
| 2 V |
100 uV |
|
| 20 V |
1 mV |
|
| 200 V |
10 mV |
|
| 1000 V |
100 mV |
|
|
+/-(0.75%+10d) |
|
10 Mohm |
|
|
|
|
|
|
|
|
|
Accuracy |
|
Over Load Protection |
|
|
|
|
|
DCA |
|
| 2 mA |
1 uA |
|
| 20 mA |
10 uA |
|
| 200 mA |
100 uA |
|
| 2000 mA |
1 mA |
|
| 10 A |
10 mA |
|
|
| |
|
| +/- (0.5% + 5d) |
|
| |
|
| +/- (0.75%+ 5d) |
|
| +/- (1.0%+ 10d) |
|
|
|
|
|
|
|
|
ACA |
|
| 2 mA |
1 uA |
|
| 20 mA |
10 uA |
|
| 200 mA |
100 uA |
|
| 2000 mA |
1 mA |
|
| 10 A |
10 mA |
|
|
| |
|
| +/- (0.75% + 10d) |
|
| |
|
| +/- (1.0%+ 10d) |
|
| |
|
|
|
|
|
|
|
|
Resistance |
|
| 200 ohm |
0.01 ohm |
|
| 2 kohm |
0.1 ohm |
|
| 20 kohm |
1 ohm |
|
| 200kohm |
10 ohm |
|
| 2 Mohm |
100 ohm |
|
| 20 Mohm |
1 kohm |
|
|
| |
|
| +/- (0.2% + 5d) |
|
| |
|
| |
|
| |
|
| +/- (1% + 10d) |
|
|
|
|
|
|
|
|
Frequency |
|
| 20 kHz |
1 Hz |
|
| 200 kHz |
10 Hz |
|
|
| +/- (1.0% + 5d) |
|
| +/- (2.0% + 5d) |
|
|
|
|
|
|
|
|
|
| Test Voltage; 2V, Threshold; Less than 200 ohm |
| Over Load Protection; 600V DC or AC Peak |
|
| Test Voltage; 2V, Max. Test Current; Approx.
1mA |
| Over Load Protection; 600V DC or AC Peak |
|
|
|
| Power |
| Requirement |
|
| Dimension |
|
| Weight |
|
| Standard |
| Accessories |
|
|
| 115V or 230V AC +/- 10% , 48 to 60Hz |
| |
|
| 240(W) X 270(D) X 95(H) mm |
|
| Approx. 2 kg(Net) |
|
| Test Lead, Instruction Manual, Power Cord |
| |
|
|
| |
| - Protection to IEC 529 Ordinary Insulation Category
: II, Potable equipment of local level |
|
|
|
