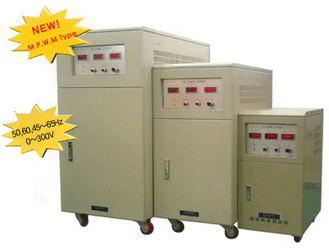

>MAIN AFC series(MPWM TYPE)

AC POWER SOURCE
    download

  Specification
MODEL AFC-2K AFC-3K ACP-5K AFC-7.5K
Output Capacity 2KVA 3KVA 5KVA 7.5KVA
Circuit Type M.P.W.M (Multi Pulse Width Modulation)
Input Voltage 100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V / 380V / 440V ,
1PHASE or 3PHASE(Option) ( 10%)
Input Frequency 50 / 60
Output Voltage 0~300V, 1PHASE or 3PHASE(Option) ( 10%)
Voltage Stability 1%
Output Frequency 50.60,45~65 Variable
Frequency Stability 0.1%
T.H.D within 3%
Protector Electronic Circuit / Over Load / Short Circuit
Frequency Meter LED Digital Display
V.A-Meter True RMS Digital Display
Temperature 0~40
Humidity 0~90%
Transfer Time Zero Break
* option Output Voltage : 0~700V
* option Remote Control Function(RS-232C : Variable Voltage)
Remote Multi-control (RS-485)

MODEL AFC-10K AFC-15K AFC-20K AFC-30K
Output Capacity 10KVA 15KVA 20KVA 30KVA
Circuit Type
M.P.W.M (Multi Pulse Width Modulation)
Input Voltage 100V / 110V / 115V / 120V / 200V / 220V / 230V / 240V / 380V / 440V ,
1PHASE or 3PHASE(Option) ( 10%)
Input Frequency 50 / 60
Output Voltage 0~300V, 1PHASE or 3PHASE(Option) ( 10%)
Voltage Stability 1%
Output Frequency 50.60,45~65 Variable
Frequency Stability 0.1%
T.H.D within 3%
Protector Electronic Circuit / Over Load / Short Circuit
Frequency Meter LED Digital Display
V.A-Meter True RMS Digital Display
Temperature 0~40
Humidity 0~90%
Output Wave Zero Break
* option Output Voltage : 0~700V
* option Remote Control Function(RS-232C : Variable Voltage)
Remote Multi-control (RS-485)
