	Part name	Main Component	pecifications

1	Coding part	- 10 KEYPAD / - 16*2 Text LCD	- Processor & Controller
	(Encoding/Decoding)	- JTAG Port / - ISP Port	: ATMEL A tmega128, MA X II
		- Test Port Array / - Status Led *8

2	Modem part	- 2*2 Transformer / - ISP Port	- Processorr : ATMEL A Tmega128
	(ASK/FSK/PSK)	- Active/Logic/Discrete Component	- Operation Volt : +12Vdc, +5Vdc

3	125KHz Reader	- Coil Antenna / - Atmega128	- 125Khz Baseband
		- JTAG Port / - ISP Port	- Max 15cm Detection range(dependent on
		- USB Client Port / - Test Port Array	Air-Interface protocols and Tag brands)
		- DC Adaptor	- Protocols (Air Interface) : ISO18000-2
			- Controller : ATMEL Atmega128
			- Communication port : USB 2.0 Support
			- Operation Voltage : +3Vdc, +5Vdc

4	13.56Mhz Reader	- PCB Antenna / - Atmega128	- 13.56Mhz Baseband
		- JTAG Port / - ISP Port	- Max 15cm Detection range (dependent on
		- USB Client Port / - Test Port Array	Air-Interface protocols and Tag brands)
		- DC Adaptor	- Protocols (Air Interface)
			: ISO1443-A/ ISO 1569-3
			- Controller : Atmel Atmega128
			- RFID IC : EM4094
			- Communication port : USB 2.0 Support
			- Operation Voltage : +3Vdc, +5Vdc

5	LCD module	- TFT Graphic LCD	- 4”wide TFT LCD / - Touch PAD
		- UART (with ZigbeX & Bluetooth)	- Operation Voltaget: +3Vdc, +5Vdc

	X-Module	- Intel PXA255 / - Main Memory	- Intel XScale PXA255 (400Mhz)
		- AC97 Codec / - Ethernet Controller	Flash 32MByte, SDRAM 128MByte
		- USB 2.0 Client port / - RS232 port	- CS4202 Audio Code / - SMSC LAN91C111
		- JTAG	- Expansion Connector
			: Supported TFT Graphic
			LCD Etc UART (ZigbeX…)
			- OS : WinCE 5.0

	Base	- Power Supply / - USB	- Input : AC115~230V/60~50Hz
		- LAN / - Socket :8ea	- Output : +5Vdc(5A), +12Vdc(1A)

Accessory

	Item	Specification

1	Accessory	- AC to DC Adaptor : 220V AC input +5VDC(1A) Output / - Stylus Pen

2	Cable	- Power Cable : AC85~264 Free Voltage input
2	Cable	- USB Cable : A to B Type / - Ethernet Cable : Crossover Type

3	Etc	- User’s Manual : Paper / - CD : Manual, Datasheet, Application SW

4	TAG	Card type ISO 18000/ISO1443

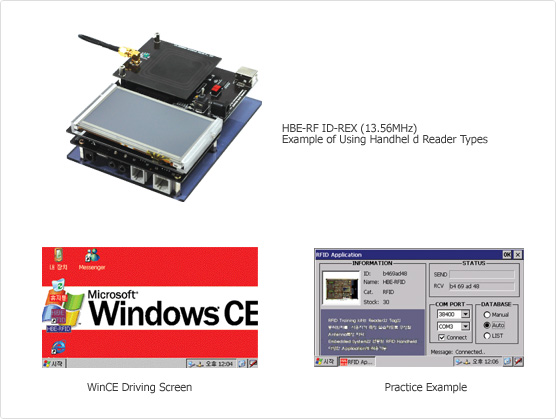

Handhel dpractice example

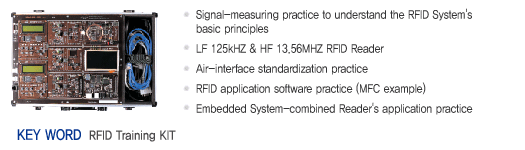

Features

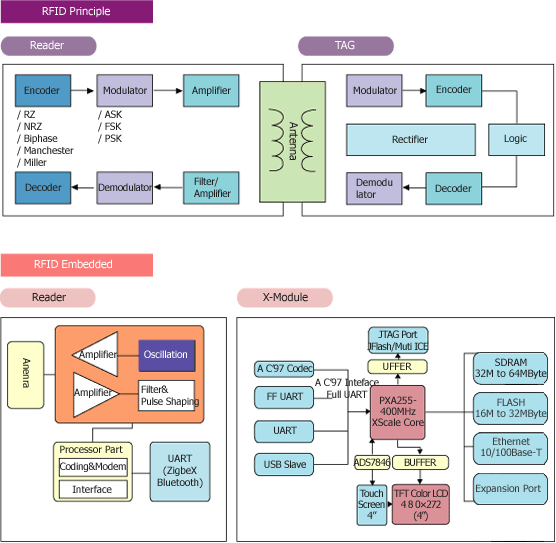

Signal Level's RFID Principle Practice
-	Data Cod ing-Modulation-Demodulation-Decoding's operation principle practice
-	Data Coding mode-RZ, NRZ, Miller, Biphase, Manchester
-	Modem mode-ASK, FSK, PSK

Various band's RFID Reader & Tag Practice
-	125KHz Reader : Co rrespondin g to ISO 18000-2 (Measurin g each part's signals through self circuit configuration)
-	13.56MHz Reader : Corresponding to ISO 14443-A / ISO 15693-A
-	USB interface

RFID Embedded Practice Part
-	Implemented the embedded system (Intel XScale PXA255)- Handheld type RFID Reader.
-	WinCE 5.0 applied
-	Adopted the Touch Pad-supported 4 °±wide TFT LCD

Various Applications Practice
-	Interworking with ZigbeX, USN p ractice unit of this company
-	Embedded system's extensive applications

Product Configuration

Item	Modul Count	Remark

Encoding part	1	Data Encoding

Decoding part	1	Data Decoding

ASK M odul e	1	ASK Modem

FSK Module	1	FSK Modem

PSK Module	1	PSK Modem

RFID Reader	2	Reader Module - 125KHz/13.56MHz ( option 900MHZ Read er)

LCD Module	1	4”wide TFT LCD

PXA Module	1	Intel PXA255 / WinCE 5.0

Base	1	Power, I/O

Part Specifications

Coding Part - Signal Encoding/Decoding

1.	Signal coder-encoder & Decoder / - 64bit format Monitoring , - 8bit format Monitoring
2.	Coding Data / - NRZ/RZ/Manchester0/ Manchester1/Biphase/Miller
3.	Device / - CPU : Atmega128 , - CPLD : MAX II

Modulation & Demodulation Part

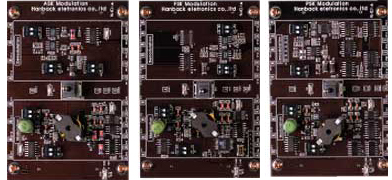

ASK. FSK, PSK Modulat ion & Demodulation

1.1 ASK. FSK, PSK Modulation SignalMonitoring

	- Implementin g test points f or each part
	pract ice
	- NRZ / RZ / Manchester / Biphase / Miller

1.2 Tag Back scatteri ng Check

	-Course of supplying power to TAG
	( Indicate LED)

Coding Part - Signal Encoding/Decoding

1.	Antenna
	1) Data transmission practice th rough induc tive coupling
	- Data transmission through RLC resonance / - Impedance matching practice
	2) TAG recognition distance practice
	3) Feacture practice according to antenna types
2.	RFID Reader
	1) Reader Practice
	- 125Khz-nstructin Circuit / - 13.56Mhz-EM4094
	2) USB Interface
	3) Various Application Practice
	- Fixed Reader practice / - Extend Application practice(ZigbeX or Bluetooth interworking)

Embedded part

1.	LCD Module
	1) 4” Wide LCD With Touchpad
	2) UART : ZigbeX/Bluetooth module
2.	PXA-255 Module
	1) CPU : intel PXA-255 / 2) OS : WinCE
	3) Connection / Wired LAN/Full UART

Table of Practice Contents

RFID In troduction 1. RFID System Overview

RFID Principle (Practice)

2. Data Coding (Encoding & &ecoding) / 3. ASK modulation &demodulation practice

4. FSK modulation &demodulation practice / 5. PSK modu lation &demodulation practice

6. Antenna theory & pract ice

RFID Reader

7. 125KHZ Reader Hardware / 8. 125KHZ Reader firm dware / 9. 125KHZ Read er soft ware

10. RFID St and ard / 11. Smart Card Standard ISO 14443 -A / 12. Smart Card Stand ard ISO 15693-A

13. 13.56MHZ Reader Hardware / 14. 13.56MHZ Reader software

15. Handh eld RFID Reader Hardware / 16. Handheld RFID Reader Software
