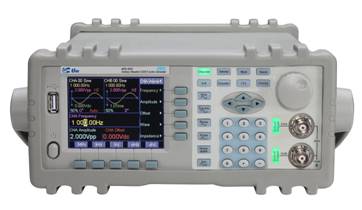

AFG-1005 / AFG-1010 / AFG-1020

Arbitrary/DDS Function Generator

Features

· Max. output frequency 5MHz/10MHz/20MHz

· 3.5-inch TFT LCD display

· Direct Digital Synthesis technology (DDS)

· Sampling rate100Msa/s, vertical resolution 8 bit, waveform length 1Kpts

· Arbitrary waveform functions, up to 8 sets of usersdefined waveforms

· Output waveforms: 32 built-in waveforms and 8 sets of user defined waveforms

· 40 sets panel setting save & recall

· Min.1mV (50Ω) waveform output with good stability

· FM, FSK, ASK, and PSK modulations

· Over voltage protection, over current protection, short circuit protection, reverse voltage protection

· Numeric keyboard and rotary dial for data input

· SMT technology production, high reliability

· 100MHz frequency counter

· RS232 interface

Block Diagram

Specification

	AFG-1005(5MHz)	AFG-1010(10MHz)	AFG-1020(20MHz)
Waveform (Output A)
Waveform types	40 types waveforms, including Sine, Square, Pulse and 8 sets of arbitrary waveforms
Waveform length	1024 points
Vertical resolution	8 bits
Sampling rate	100MSa/s
Sine harmonic distortion	≥40dBc (<1MHz, ), ≥35dBc (1MHz~20MHz)
Sine total distortion	≤1% (20Hz~200kHz)
Square	Rise/fall edge time: ≤35ns, Overshoot: ≤10%
Square wave duty cycle	1%~99%
Frequency (Output A)
Frequency range	Sine wave: 40mHz~Max.frequency Other waveforms: 40mHz~1MHz
Resolution	40mHz
Accuracy	± (50ppm + 40mHz)
Amplitude (Output A)
Amplitude range	2mVpp~20Vpp, 40mHz~10MHz (high impedance) 2mVpp~15Vpp, 10MHz~15MHz (high impedance) 2mVpp~8Vpp, 15MHz~20MHz (high impedance)
Resolution	20mVpp (amplitude>2Vpp), 2mVpp (amplitude<2Vpp)
Accuracy	± (1% +2 mVrms) (high impedance, RMS, frequency 1kHz)
Stability	±0.5% / 3 hours
Flatness	±5% (frequency of 10MHz or below ), ±10% (frequency above 10MHz)
Output impedance	50Ω
Offset (Output A)
Offset range	±10V (high impedance, attenuation 0 dB)
Resolution & Accuracy	20mVdc, ±(1% + 20mVdc)

Sweep (Output A)
Linear sweep or frequency sweep
Sweep range	Free to set starting point and end point
Sweep step	Higher than any figure of the resolution
Sweep rate	10ms~60ms/step
Sweep mode	Linear, Log Up or Log Down, Single
Frequency Modulation (FM) (Output A)
Carrier signal	Output A waveforms
Modulating signal & deviation	Output B signal or External signal, 0%~20%
Burst
Burst counts & Burst mode	1~65000 cycles , Internal, External, Single
FSK, ASK, PSK (Output A)
FSK	Free to set carrier waveform frequency and hopping frequency
ASK	Free to set carrier waveform amplitude and hopping amplitude
PSK	Hopping phase: 0~360°, Max. resolution: 1°
Alternative rate	10ms~60s
Output B
Waveform	40 types waveforms, including Sine, Square, Pulse and 8 sets of arbitrary waveforms
	Length: 1024 points
	Sampling range : 12.5Msa/s
	Amplitude resolution : 8 bits
	Square wave duty cycle : 1%~99%
Frequency	Range: Sine wave: 40mHz~1MHz; Other waveforms: 10mHz~100kHz
	Resolution: 10mHz
	Accuracy: ± (50ppm+10 mHz)
Amplitude	Range: 50mVpp~20Vpp (high impedance)
	Resolution: 20mVpp
	Output impedance : 50Ω
Burst	Burst count : 1~65000 cycles
	Burst mode : Internal, External, Single
TTL output
Waveform characteristics	Square wave, rise/fall time ≤20ns
Frequency characteristics	40mHz~1MHz
Amplitude characteristics	TTL and CMOS compatible, low<0.3V, high>4V
Frequency counter
Frequency range	1Hz~100MHz
Input signal amplitude	100mVpp~20Vpp
General
Power source	110V/220V AC, (1±10%), 50Hz (1±5%)
Power consumption, Display	<30V, TFT LCD
Environmental	Temperature: 0~40℃， humidity: <80%

Dimension & Weight	365260110mm, 3KG
